    home wind turbine,

    home wind turbine,

     Why are Customers Considering Wind Power ?
    1. Offset rising energy costs
    2. Marketing and increased sales
    3. Currently the lowest cost renewable
    4. Provides a reasonable return on investment
    5. Reduce dependence on fossil fuels


    Who’s Installing Wind Power ?
      1. Commercial Businesses
      2. Industrial Businesses
      3. Agricultural Businesses
      4. National Retailers
      5. Schools and Universities
      6. Municipalities
      7. Non-profit Organizations





    Since 2010 the cost of solar power has reduced significantly thus eroding the economic value of residential wind turbines. Today, solar power can produce 60% more power for the same money spent on wind turbines! This market change has ended the world Department of Energy “Home or Residential Small Wind Turbines”. It has come, gone, doubled in price and resulted in high annual maintenance cost. While the cost of Solar Energy has dropped 80%, produces the same power (spin your meter backwards) as wind turbines for nearly 60% less, has no moving parts and requires no maintenance!  No matter how much wind you think you have, affordable solar power for world is here!


    However, it's meaning no demands on small wind turbine for home  of course answer is no, althought solar panel cost is cheap but also has boundedness while at night and some place where weak sunshine or somewhere do not have enough space or land to install solar panels, so wind turbine also can be as a complement energy and needs to put in considering, supplement for solar, for diesel, for working home appliances


    Wind Turbine Normal Features
    1>Tower, Foundation and Wiring
    2> Wind turbine Generator
    3> Standard 3 Year Limited Warranty
    4> Pitching Blades – utility grade wind turbines enabling production of safe and usable energy at nearly any wind speed.


    IEC 61400 International Standard | UL Recognized Component RU-E210376 | IEEE 1547 and U.L. 1741Wind turbine have a normal survival wind speed of 123 to 134 MPH (50m/s-60m/s)


    The average home consumes about 36,500 KWH per year.* If you consume more than that, we can help! Learn more about site planning and budgeting. We service all of place of world.  * according to the International. Energy Information Administration and Internation (IEC-61400) Energy Consumption Calculation Formula.


    So for home wind turbine projects, base on 5m/s average wind speed, we recommend model 500w wind turbine[1,095 KWH/Annual],1kw wind turbine[2,450 KWH/Annual], 2kw wind turbine[4,680 KWH/Annual], 3kw wind turbine[6,570 KWH/Annual], and 300w wind turbine [657 KWH/Annual]. Average wind speed the higher the energy we can get is more than above number listing.


    Main Parameter:

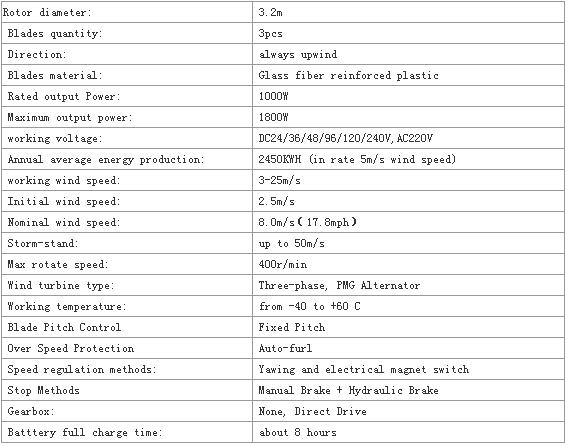

    SW-1KW wind turbine for home series (1000W wind turbine, wind turbine generator)



    Model:SW-1KW
    Rotor diameter:3.2m
    Blades quantity:3pcs
    Direction:always upwind
    Blades material:Glass fiber reinforced plastic
    Rated output Power:1000W (1KW)
    Maximum output power:1800W(1.8KW)
    working voltage:DC24/36/48/96/120/240V,AC220V
    Annual average energy production:2450KWH (in rate 5m/s wind speed)
    working wind speed:3-25m/s
    Initial wind speed:2.5m/s
    Nominal wind speed:8.0m/s(17.8mph)
    Storm-stand:up to 50m/s
    Max rotate speed:400r/min
    Wind turbine type:Three-phase, PMG Alternator
    Working temperature:from -40 to +60 C
    Blade Pitch ControlFixed Pitch
    Over Speed ProtectionAuto-furl
    Speed regulation methods:Yawing and electrical magnet switch
    Stop MethodsManual Brake + Hydraulic Brake
    Gearbox:None, Direct Drive
    Batttery full charge time:about 8 hours

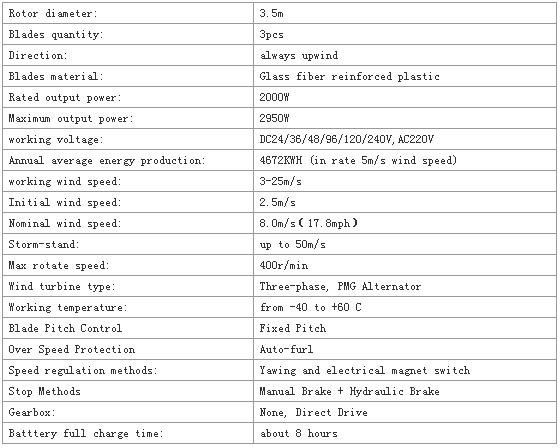

    SW-2KW wind turbine for home series (2000W wind turbine, wind turbine generator)

    Rotor diameter:

    3.5m

    Blades quantity:

    3pcs

    Direction:

    always upwind

    Blades material:

    Glass fiber reinforced plastic

    Rated output power:

    2000W

    Maximum output power:

    2950W

    working voltage:

    DC24/36/48/96/120/240V,AC220V

    Annual average energy production:

    4672KWH (in rate 5m/s wind speed)

    working wind speed:

    3-25m/s

    Initial wind speed:

    2.5m/s

    Nominal wind speed:

    8.0m/s(17.8mph)

    Storm-stand:

    up to 50m/s

    Max rotate speed:

    400r/min

    Wind turbine type:

    Three-phase, PMG Alternator

    Working temperature:

    from -40 to +60 C

    Blade Pitch Control

    Fixed Pitch

    Over Speed Protection

    Auto-furl

    Speed regulation methods:

    Yawing and electrical magnet switch

    Stop Methods

    Manual Brake + Hydraulic Brake

    Gearbox:

    None, Direct Drive

    Batttery full charge time:

    about 8 hours

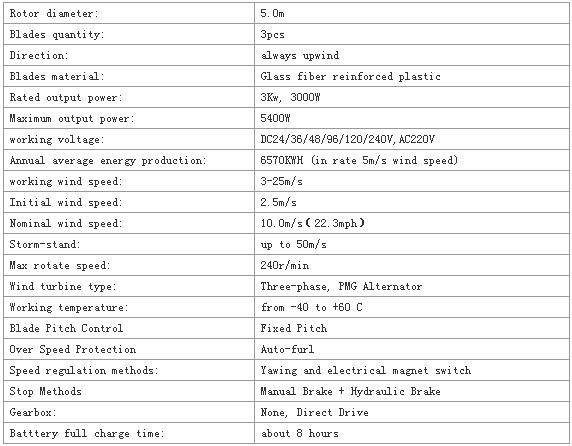

    SW-3KW wind turbine for home series (3000W wind turbine, wind turbine generator)

    Rotor diameter:

    5.0m

    Blades quantity:

    3pcs

    Direction:

    always upwind

    Blades material:

    Glass fiber reinforced plastic

    Rated output power:

    3Kw, 3000W

    Maximum output power:

    5400W

    working voltage:

    DC24/36/48/96/120/240V,AC220V

    Annual average energy production:

    6570KWH (in rate 5m/s wind speed)

    working wind speed:

    3-25m/s

    Initial wind speed:

    2.5m/s

    Nominal wind speed:

    10.0m/s(22.3mph)

    Storm-stand:

    up to 50m/s

    Max rotate speed:

    240r/min

    Wind turbine type:

    Three-phase, PMG Alternator

    Working temperature:

    from -40 to +60 C

    Blade Pitch Control

    Fixed Pitch

    Over Speed Protection

    Auto-furl

    Speed regulation methods:

    Yawing and electrical magnet switch

    Stop Methods

    Manual Brake + Hydraulic Brake

    Gearbox:

    None, Direct Drive

    Batttery full charge time:

    about 8 hours

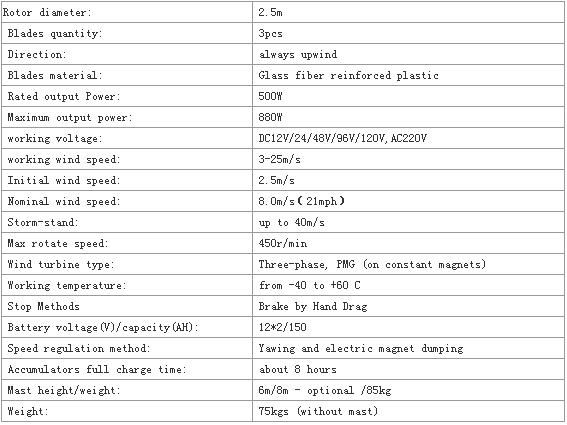

    SW-500W wind turbine for home series(500W wind turbine, wind turbine generator) is also available for us to make!



    If need to get more info of solar/wind power system for your home, please contact us:
    online way: Whatsapp: +86-18806776641/ Skype: doris421pu
    Email way:  sales@solarpanelkitschina.com
    http://www.solarpanelkitschina.com ;    https://www.windpowercn.com
