Product presentation：
PV grid-connected power systemincludes PV Modules, grid-connected inverter, meters and power switchboard. The PV modules or wind generator convert the energy to the DC power. Then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage .The AC power FEED-in the grid partly and the other power supply the local loads.The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity
Product advantages：
1. Using IGBT fromMitsubishi Company as the power components.
2. Usingmany American ATEMEL company microprocessors as figure controller.
3. Perfect protection and warning functions.
4. MPPT(MaximumPower Point Tracking )technology.
5. Disturbance detection technology, achieve to control of anti-isolated island.
6. Circuit frame compact, Max. Efficiency ≥ 94%.
7. Stainless steel shell with hermetic seal waterproof and dustproof class IP65.
8.1150VDC input voltage range wide, Max. up to 1150 VDC.
9. Communication, multi communication interface can be selected.
10. Pure sine wave output, automatically synchronized with the grid tracking, power factor close to 1, Current low
ha rmonic content, non-polluting power grid, no impact.
11. Inverter current closed-loop control, power controllable.
12. Big-screen Chinese/English LCD, perfect display, interface-friendly.
13. Quick and easy to installation, in according with IEEE929-2000, UL1741

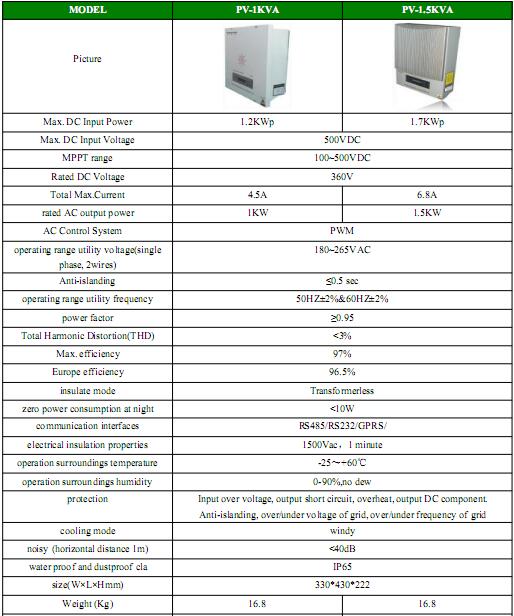

MODEL | PV-1KVA | PV-1.5KVA |
|
| |
Max. DC Input Power | 1.2KWp | 1.7KWp |
Max. DC Input Voltage | 500VDC | |
MPPT range | 100~500VDC | |
Rated DC Voltage | 360V | |
Start voltage | 180V | |
Total Max.Current | 4.5A | 6.8A |
rated AC output power | 1KW | 1.5KW |
AC Control System | PWM | |
operating range utility voltage(single phase, 2wires) | 180~265VAC | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS485/RS232/GPRS/ | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 330*430*222 | |
Weight (Kg) | 16.8 | 16.8 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||
MODEL | PV-2KVA | PV-3KVA |
Picture |
|
|
Max. DC Input Power | 2.5KWp | 3.5KWp |
Max. DC Input Voltage | 500VDC | |
MPPT range | 100~500VDC | |
Rated DC Voltage | 360V | |
Start voltage | 180V | |
Total Max.Current | 9.0A | 13.6A |
rated AC output power | 2KW | 3KW |
AC Control System | PWM | |
operating range utility voltage(single phase, 2wires) | 180~265VAC | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS485/RS232/GPRS/ | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 330*430*222 | |
Weight (Kg) | 17.3 | 17.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||

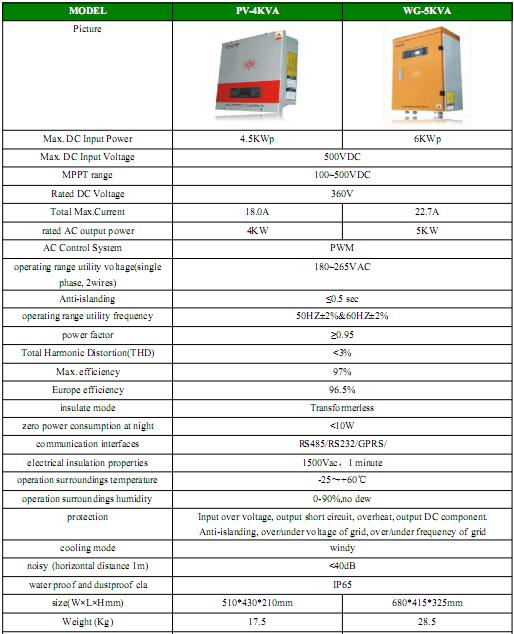

MODEL | PV-4KVA | PV-5KVA |
Picture |
|
|
Max. DC Input Power | 4.5KWp | 6KWp |
Max. DC Input Voltage | 500VDC | |
MPPT range | 100~500VDC | |
Rated DC Voltage | 360V | |
Total Max.Current | 18.0A | 22.7A |
Start voltage | 180V | |
rated AC output power | 4KW | 5KW |
AC Control System | PWM | |
operating range utility voltage(single phase, 2wires) | 180~265VAC | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS485/RS232/GPRS/ | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 510*430*210mm | 680*415*325mm |
Weight (Kg) | 17.5 | 28.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||

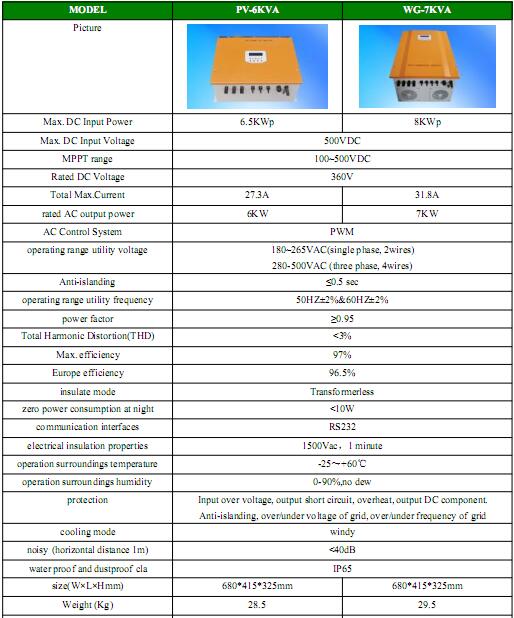

MODEL | PV-6KVA | WG-7KVA |
Picture |
|
|
Max. DC Input Power | 6.5KWp | 8KWp |
Max. DC Input Voltage | 500VDC/820VDC | |
MPPT range | 100~500VDC/200-820VDC | |
Rated DC Voltage | 360V | |
Start voltage | 180V | |
Total Max.Current | 27.3A | 31.8A |
rated AC output power | 6KW | 7KW |
AC Control System | PWM | |
operating range utility voltage | 180~265VAC(single phase, 2wires) 280-500VAC (three phase, 4wires) | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS232 | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 680*415*325mm | 680*415*325mm |
Weight (Kg) | 28.5 | 29.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||
MODEL | PV-8KVA | PV-9KVA |
Picture |
|
|
Max. DC Input Power | 8.5KWp | 9.9KWp |
Max. DC Input Voltage | 500VDC/820VDC | |
MPPT range | 100~500VDC/200-820VDC | |
Rated DC Voltage | 360V | |
Start voltage | 180V | |
Total Max.Current | 27.3A | 31.8A |
rated AC output power | 8KW | 9KW |
AC Control System | PWM | |
operating range utility voltage | 180~265VAC(single phase, 2wires) 280-500VAC (three phase, 4wires) | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS232 | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 680*415*325mm | 680*415*325mm |
Weight (Kg) | 28.5 | 29.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||
MODEL | PV-10KVA | PV-20KVA |
Picture |
|
|
Max. DC Input Power | 13KWp | 22KWp |
Max. DC Input Voltage | 500VDC/850VDC | |
MPPT range | 100~500VDC/200-820VDC | |
Rated DC Voltage | 360V | |
Total Max.Current | 45.5A / 26.3 [3-phase] | 66.6A / 40.0A [3-phases] |
rated AC output power | 10KW | 20KW |
AC Control System | PWM | |
operating range utility voltage | 180~265VAC(single phase, 2wires) 280-500VAC (three phase, 4wires) | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS232 | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 680*415*325mm | 680*415*325mm |
Weight (Kg) | 63.5 | 65.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||
MODEL | PV-30KVA | PV-50KVA |
Picture |
|
|
Max. DC Input Power | 35KWp | 56KWp |
Max. DC Input Voltage | 820VDC | |
MPPT range | 200~820VDC | |
Rated DC Voltage | 360V | |
Total Max.Current | 85.5A /46.3 [3-phase] | 106.6A / 80.0A [3-phases] |
rated AC output power | 30KW | 50KW |
AC Control System | PWM | |
operating range utility voltage | 180~265VAC(single phase, 2wires) 280-500VAC (three phase, 4wires) | |
Anti-islanding | ≤0.5 sec | |
operating range utility frequency | 50HZ±2%&60HZ±2% | |
power factor | ≥0.95 | |
Total Harmonic Distortion(THD) | <3% | |
Max. efficiency | 97% | |
Europe efficiency | 96.5% | |
insulate mode | Transformerless | |
zero power consumption at night | <10W | |
communication interfaces | RS232 | |
electrical insulation properties | 1500Vac，1 minute | |
operation surroundings temperature | -25～+60℃ | |
operation surroundings humidity | 0-90%,no dew | |
protection | Input over voltage, output short circuit, overheat, output DC component. Anti-islanding, over/under voltage of grid, over/under frequency of grid | |
cooling mode | windy | |
noisy (horizontal distance 1m) | <40dB | |
water proof and dustproof cla | IP65 | |
size(W×L×Hmm) | 680*415*325mm | 680*415*325mm |
Weight (Kg) | 63.5 | 65.5 |
FOB Shanghai | ||
We can adjust the configurations and parameters according to customers’ requirement. | ||
